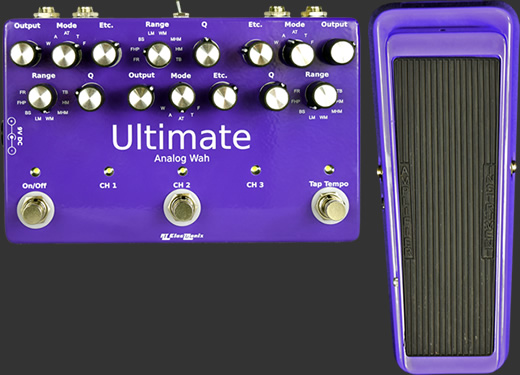

5 Types of “Wah”, 3 independent channels, Tap Tempo, and an optional custom expression Rocker make the Ultimate Analog Wah the most versatile, practical, and real estate worthy wah ever!

The Ultimate Analog Wah has 5 modes of operation: Classic Wah (W) Auto-Wah(A) Auto-Touch Wah (AT), Touch Wah (T), and Fixed Wah (F). Three channels with independent controls allow users to set up 3 different wahs to switch between. Any combination of wahs is acceptable!

Q and Range are adjustable via 8 positions switches, Output controls set the level, and our “Etc.” knob controls “Attack”, “Speed”, and “Frequency” in their applicable modes. This information is printed on the back panel along with a decoder for Mode abbreviations.

Controls

• Output:Offers and output trim to adjust the overall volume.
• Range:Selects Range of wah travel.
• Mode:Selects Mode of wah operation.
• Q:Sets the Q or “sharpness” of the wah filter.
• Etc.:Controls “Attack”, “Speed”, and “Frequency” in their applicable modes.
• Tempo X:3 position switch sets Tap Tempo multiplier. X.5, X1, or X2.

Features

• Tap Tempo
• XSYNC Compatible
• Optional Rocker Expression pedal allows traditional wah use and “toe-click” On/Off
• Speed Expression Port
• Back Panel Decoder keeps all practical information within arms length.

Power

9V DC -- 200 mA
5.5mm OD, 2.1mm ID - Center negative
